On looking deeper into gm.dls, wtf



It's a well known fact that cheating is an important factor in 4k (and only 4k) intros. The best known example is the now widely used and accepted gm.dls trick - in case you still don't know it, it's all about a 3 megabyte file that contains almost five hundred wav files, ready to be triggered by your module player or to be input to any machine of a soft synthesizer. Even if these wavs sound crappy, it solves a big part of the sound generation problem at least. However for textures, the problem still remains, as can be seen in the fact that 90% of the 4k intros lack textures. I think if we had an equivalent to gm.dls for textures, it would become widely used too (again, as source of textures, or just as source of patterns in a complex texture generation system). Well, we have all those wallpapers of Windows; the problem is they are different between OS versions, unlike gm.dls. So let's think of something else in a loud voice... "This is not easy... but shit, but we need to find something, think... let's see, we need a file that is as standard as gm.dls that contains textures... hm... a file as standard as gm.dls... standard as gm.dls... as gm.dls. Got it! The answer is gm.dls!"

gm.dls, source of textures

So we are going to try to find textures in a collection of wav files? It's not obvious this is going to work at all. Why should anything in gm.dls resemble a texture, and not noise? Well, actually getting noise from a digital file would be quite surprising, yet useful. Back to gm.dls, when displaying a wav file as an image what we would expect to see is some kind of unstructured random patterns (not sure "random patterns" makes sense, but well, you get it). Luckily sounds are not random but quite smooth. But sounds are 1D signals, and what we look for is 2D signals. So, it's clear what we have to do, take the 1D signal, split it in equally-sized chunks, and put each chunk below the others to form a stack of 1D signals - an image. If you ever played with sound or any other kind of 1D signals, you'll probably see by now that this process will not create any nice looking image unless these chunk sizes are chosen in a "magical" way such that each chunk is similar to the previous ones, so that each row of the image makes sense when put together with the other rows.

wav 5, pitch 440 Hz

Luckily again for us, sound is all about oscillations of periodic patterns. Indeed, real sounds are not periodic (that would be terrible boring to listen to), but they do contain quite an amount of periodic power (watts). Basically, what I say is that the Fourier transform (well, the spectral density of a signal) normally has some nice peaks at given frequencies that make actually a sound sound like that. Without those peaks, without any dominant periodicities over others (flat spectrum), the thing would sound like noise. What all this means is that the signals (wavs) in gm.dls will certainly contain self-similarities or repetitions, because they are sounds! Meaning that it's not a miracle or anything magical that for each wav file in gm.dls, we can find a set of values, so that when the wav is split in chunks of that size we get a collection of similar chunks. And this leads to a coherent 2D image...

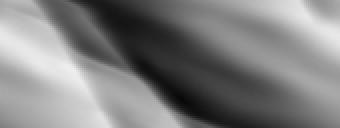

wav 388, pitch 259 Hz

OK, let's just try and see

You know what to do now. Open gl.dms, search for "data" sequence, read 4 more bytes with the length of the sample, read as many samples as you just indicated, store the sound buffer, and go for the next "data" chunk. For each sound buffer, split it in chunks and construct the image. As indicated before, the chunk size should match the main frequency peak of the signal. There are also other values that make interesting patterns. For example: all multiples of that value (harmonics). Also look to the second and third main frequency peaks, if they are not already harmonics of the main one, they will actually create very different yet interesting patterns. But don't worry, you don't need to program any DFT or self-correlation here. Just try different values in brute force, you will immediately see which values are the good ones, because as you approach a good pitch value the image changes from an ugly thing into an interesting shape. Harmonic values will normally lead you to tiled/streched versions of the main image. Depending on how inharmonic the sound is, you can get more than one very different patterns (inharmonic signals conain several hidden images, as opposed to harmonic ones that only contain one!).

When I came up with the idea, I could not resist to try it. In a few minutes I got 70 useful textures. Not bad for a sound repository! I added a few of them to this article. Note that these are NOT photoshopped at all, what you see is the raw data coming from the gm.dls file, believe it or not. Some of them look like they had a lighting effect (emboss) - that comes also from the gm.dls file and it's probably due to the fact that the underlying sound was high-pass or band-stop filtered.

Another side effect of dealing with periodic signals is that most textures tile quite well, at least horizontally. They are not fantastic textures as you can see below, but remember they come for free!

wav 53, pitch 668 Hz

wav 54, pitch 519 Hz

wav 117, pitch 296 Hz

wav 121, pitch 496 Hz

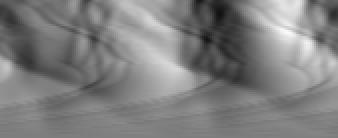

wav 377, pitch 261 Hz

wav 386, pitch 525 Hz

wav 391, pitch 394 Hz

wav 405, pitch 440 Hz

wav 451, pitch 817 Hz

holly gm.dls

To finish this short article, let's keep dreaming for a bit more now. What if we could extract something else from gm.dls, like curves for cameras? We are not going to find ready-to-use animation curves there for sure, but we could let the modeler create the curves for the intro as a weighted average of wav files. "You're crazy, it's gonna be very hard to move cameras with a blending of wav files", will your artist say, and "Yeah, spending one hour to optimize 53 bytes is hard too, so what?" you have to answer. Anyway, musicians are used to work like this (what else is an .XM or .MOD than a weighted average of wav files???).

Going crazy now, we could reverse the problem and try to match your curves into the wav files of gm.dls. Project your curve into the basis functions (the wav files), and from all these correlations pick the few with higher amplitude. Hopefully the distribution will be skewed enough so that we can store only a few of them and compress the funky curve into, say, 10 bytes. We could have used standard projection functions like cosines (DCT) or exponentials (DFT), but these don't work well if your curve is not very smooth, and implementing wavelets would certainly need more than just a few bytes of code.

A last crazy idea would be to extract 3D meshes from gm.dls. If we forget about the obvious approach of taking the previous 2D images and applying them as height maps / displacement maps, we can still try to proceed as in 2D images by stacking chunks of sound (in 3D now). The problem is that wav files are quite short, and we would get just a 32^3 volume from them in the best case. Third option is to interpret each trio of values in the wavs as a 3D point (quite like you do to visualize a strange attractor). Given the fact that our sounds are highly-correlated semi-periodic signals, I bet you would "just" get some kind of pq-torus shapes, not very interesting.

Well, I think I already said too many crazy things for today. Thanks for reading!
